NEW FLAGSHIP CONSOLE FOR YAMAHA

By

20 November 2014

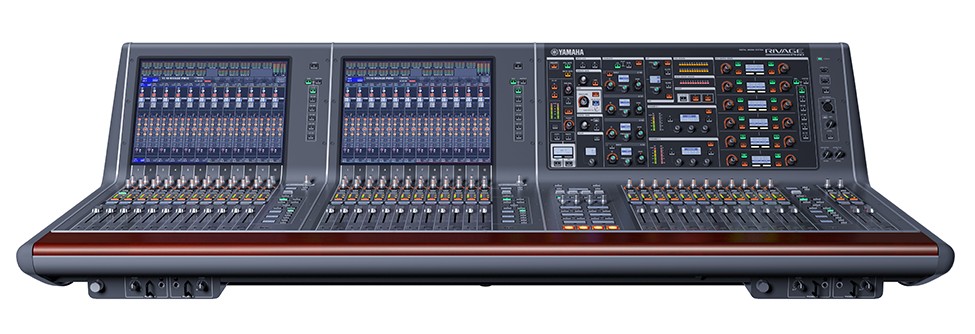

CS-R10_Front

Yamaha has today announced its new flagship live console, the Rivage PM10, which is expected to be released sometime in 2015.

It has to be said, in the forty odd years since Yamaha’s first live console was released, the PM series has done a ton of mileage and marked the waypoints of technology during that time. Although new releases are few and far between, with more than ten years passing since its PM1D and PM5D started touring. But it was worth the wait, as Yamaha has so eloquently stated, the Rivage PM10 does inherit the “DNA” that has made PM series consoles favorites, and its features have evolved to keep up with the current (or possibly future) standards expected in a quality FOH console.

The new system is comprised of the CS-R10 control surface, with a DSP-R10 DSP engine under the bonnet, the RPio622 I/O rack, three types of RY cards, two types of HY cards and is configurable to suit different setups and projects. The control surface features three groups of twelve faders and a touch screen.

Every input channel on the system comes with a Rupert Neve designed Hybrid Microphone Preamplifier, modeled on Yamaha’s VCM (Virtual Circuitry Modelling). The preamps come with ‘SILK processing’ functionality, in two different styles with a third Texture knob. All input channels also feature a 4-band full parametric EQ, while the output channels are equipped with 8-band full parametric EQ, in four algorithm types.

Yamaha collaborated with a number of effects makers, with a total of forty-five plugins added to the package. Included are Rupert Neve Designs’ VCM models of the 70s & 80s outboard devices, such as (all with the Rupert pretext) EQ 773, Comp 754, EQ 810, and Comp 830. Two new reverb plugins from TC Electronics, the VSS4HD room simulation reverbs and the envelope filtered gate reverb NON LIN2. Eventide has also included a reproduction of its H300 Ultra Harmoniser algorithm, in the H3000-Live plugin.

“The mixer is the core of any live sound system. Our new flagship RIVAGE PM10 system culminates more than 40 years of PM series history while heralding a new era of extraordinary sound, operation, and reliability. It is an unbeatable choice for the most demanding live sound applications” notes Chihaya “Chick” Hirai, Yamaha PA department manager.

“It is also no exaggeration to say that the RIVAGE PM10 system has been made possible by dedicated support and feedback from our customers throughout our long history, plus our passion for creating industry-leading products.

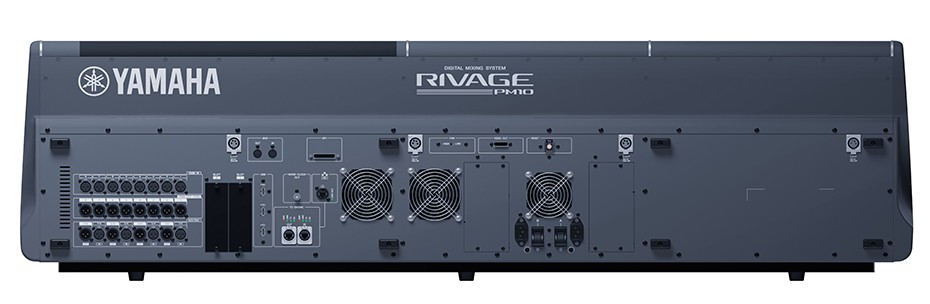

CS-R10_Rear

Pricing and Availability

The Rivage PM10 will ship in 2015 with Yamaha releasing pricing information at a later date.

Australian Distributor: Yamaha Music Australia www.yamahamusic.com.au

More Info: www.yamahaproaudio.com/rivage_pm10

Specifications

Mixing Capacity

  • 44.1/48/88.2/96 kHz
  • 144 input channels
  • 72 Mix buses, 36 Matrix buses
  • Stereo buses A and B (or Mono bus)
  • Cue A/B, Monitor A/B

Control Surface (CS-R10)

  • Display: 15″ touch panel x 2
  • Faders: 38 (12+12+12+2)
  • Selected Channel section: comprehensive channel parameters
  • Custom Fader banks: 6 x 2 on each bay
  • User Defined keys: 12 x 4 banks
  • User Defined knobs: 4 x 4 banks
  • Touch and Turn knobs: 2
  • Analog I/O: 8 in / 8 out
  • Slot: 2 MY slots
  • AES/EBU: 4 in / 4 out (with SRC)
  • Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
  • Power supply: dual redundant power supply built-in
  • Dimensions (WxHxD): 1,549 x 417 x 848mm (61.0″ x 16.4″ x 33.4″)
  • Net Weight: 85 kg (187 lbs)

DSP Engine (DSP-R10)

  • Slot: 2 MY slots, 4 HY slots (TWINLANe, Dante)
  • Ports: GPI (8 in / 8 out), Word Clock In/Out, MIDI In/Out, Remote,
  • TC IN, Fault Output
  • Power supply: dual redundant power supply built-in
  • Dimensions (WxHxD): 480 x 232 x 490.8mm (18.9″ x 9.1″ x 19.3″) (5U rack size)
  • Net Weight: 20 kg (44 lbs)

I/O Rack (RPio622)

  • Slot: 6 RY slots, 2 MY slots, 2 HY slots (TWINLANe, Dante)
  • Ports: Word Clock In/Out, Fault Output
  • Power supply: dual redundant power supply built-in
  • Dimensions (WxHxD): 480 x 455 x 489.7mm (18.9″ x 17.9″ x 19.3″) (10U rack size)
  • Net Weight: 30 kg (66 lbs)

Input Channel

  • A/B, Gain Compensation, Digital Gain, HPF, LPF, 4-band PEQ, 2 Dynamics, Delay, 2 insert points (x4 daisy-chain), Direct Out

Output Channel

  • HPF, LPF, 8-band PEQ, Dynamics, Delay (on channel and port), 2 insert points (x4 daisy-chain)

Scene Memory

  • Number of scenes: 1000
  • Functions: Recall Safe, Focus Recall, Fade Time, Preview, Overlay Filter, Isolate

DCA/Mute Group

  • 24 DCAs, 12 Mute Groups

Plug-ins

  • 384 plug-in slots (The maximum number of plug-ins used at a time varies depending on the plug-in types)
  • 45 types of plug-ins

GEQ/PEQ

  • 48 racks (96 for Flex15GEQ and 8-band PEQ)
  • 31-band GEQ, Flex15GEQ, 8-band PEQ

Recording

  • 2-track USB recording (MP3 and WAV)
  • Multitrack recording and Virtual Soundcheck via Dante (option)

I/O Network (TWINLANe)

  • 400 channels @ 44.1/48/88.2/96 kHz, 32-bit
  • Network latency: 11 samples at 44.1/48 kHz, 12 samples at 88.2/96 kHz
  • Topology: ring for network redundancy
  • Recommended cable: Neutrik opticalCON DUO multimode fiber

Console Network

  • Topology: ring for network redundancy
  • Cable: CAT5e or better (etherCON)

Dante (HY144-D)

  • 144 in / 144 out @ 44.1/48/88.2/96 kHz, 32-bit
  • Cable: CAT5e or better (etherCON)

Application software

  • RIVAGE PM10 Editor (Windows)

Planned functions in the future update

  • Engine Mirroring / Engine Cascade / Dual Console / Event List (Timecode chase) / Nuendo Live Remote / RIVAGE PM10 StageMix / Eventide H3000 Live and more
