Chris Lord-Alge Mixing My Chemical Romance

Cutting-edge converters and the latest plug-ins? To hell with that! When you’re a big-time mix engineer like Chris Lord-Alge you can basically work however you like!

By

7 June 2007

WELCOME TO THE BLACK PARADE

Writer: Gerard Way.
Producer: Rob Cavallo
Mixed by Chris Lord-Alge on an E-series SSL at Resonate Studios in Los Angeles
First released: September 12, 2006
Australia #14, New Zealand #2, UK #1, US #9.

Text: Paul Tingen

Chris Lord-Alge has an uncanny knack for making rock-oriented tracks both more hard-hitting and chart-friendly. In this capacity the triple Grammy-winning mixer has become one of the few genuine legends of the studio industry, working his magic on a truly staggering amount of tracks. Allmusic.com needs eight pages to list Chris Lord-Alge’s 750-plus credits. The first are from his early days as an assistant engineer at H&L Studios in New Jersey. This was followed by a stint as staff engineer at Unique Recording in New York. Lord-Alge moved to Los Angeles in 1988, and in subsequent years he added names like Prince, Tina Turner, Stevie Nicks, Joe Cocker, and Peter Frampton to his resumé.

In his early years Lord-Alge’s activities also included engineering, keyboards, programming, and producing. But from very early on his other album credits are outnumbered by his mixing credits, and since the late 1990s he’s focused exclusively on mixing. The list of those who have benefited from the Chris Lord-Alge mix treatment is inordinately long, but to name just a few: U2, Snow Patrol, Sheryl Crow, Dave Matthews Band, Savage Garden, Green Day, Placebo, Alanis Morissette, Bon Jovi, Faith Hill, Melissa Etheridge, The Futureheads, Fleetwood Mac, Pink, Foo Fighters, Black Eyed Peas, Courtney Love, Heather Nova, and Santana – plus he recently mixed all tracks for the latest Manic Street Preachers album.

Chris Lord-Alge, who is not to be confused with his younger brother Tom (a very successful mixer in his own right), works from Resonate Studios in Burbank, Los Angeles. In addition to the fact that his mix room is unusually airy and spacious for a studio, there are three other things that immediately attract attention: his 60-input 4056 E-series SSL, the incredible amount of (mostly vintage) outboard gear present, and his Sony 3348. Much of Lord-Alge’s gear appears to date from 15 to 20 years ago, and it’s a sign of how quickly technology is changing that one feels compelled to explain that the 3348 is a 48-track digital 1/2-inch tape machine that was first introduced in 1989, and Lord-Alge has the original 16-bit/48k version.

Lord-Alge elaborated on these ageing tools of his trade and why mixing in the box is still irrelevant for him. “I have camped in front of an E-series SSL since it came out in 1985, and I don’t think SSL has improved on the concept of that console since. The Recall, the compressor and gate, the way the channel strip is laid out, the ease of automation with a very simple computer that just does faders and mutes… I haven’t found anything better. It’s comfortable to use and it sounds musical. Sure, the G-series had a bigger keyboard, but for automation you don’t really need to be able to type letters to anybody! I prefer it simple, with a small keyboard and a computer that you probably couldn’t even run a modern video game on. But what the computer does, it does well, and in the mixes I’ve done over the years, I’ve never needed more than fader and mute automation.

“I look at the E-series as SSL’s [Neve] 8078 – it’s the ‘classic’ SSL with the classic SSL sound. That’s where they really hit the mark. I’m not saying that the J and the K and the Duality are bad, but I appreciate the character of the E-series. It’s like plugging a nice Les Paul into a Marshall stack or a great tube amp. I’ve had my desk modified, with line amps and bus amps brought up to G+ spec, but it still sounds like an E-series. If I ever wanted to change, I would like them to make me a new one from scratch, with the same technology.”

OUTBOARD IN-HOUSE

The vast array of outboard gear at Lord-Alge’s Resonate room is explained by his assertion that hardware effects still sound significantly better than plug-ins, plus the fact that he has most of his boxes permanently set to one setting and hardwired to specific channels of his SSL. If he finds himself regularly using an additional setting, he tends to buy another copy of the same box for that purpose.

The mixer extraordinaire explained: “We have a little bit of a Noah’s Ark mentality here: two of every effect ever made. It’s like when you go to an ice cream parlour, you want to make sure they have all the flavours you need to make your sundae. Plug-ins don’t give me the character that outboard has. Outboard compression is tough to beat. When I hear a song, after the first minute, I know what effect I want and, yes, most of these units are set to one sound. The Lexicon 480L has millions of presets, but its algorithm has a certain texture, and the best effect remains the delayed plate. It’s a sound that’s been around for a while, and it works really well.”

“I use the Sony DRE2000 on drums and percussion, and they have never improved on that sound. The AMS still has that non-linear setting and the classic long reverb that you can’t change and that nothing else can duplicate. The Lexicon 300 has a really nice, distinct and clean long reverb. Lexicon reverbs tend to sound bright, while the Quantec reverb has a dark quality. The delays of the Roland SDE3000 have real character, and I also use the Line 6 Echo Pro – with delays it’s all about tempo. The Marshall Tape Eliminator gives me tape slap echo, and I also still use the Eventide H3000, even though we’re not doing that much chorusing these days. All these effects are tough to beat.”

Regarding the 3348, most mix engineers these days are ProTools converts, because of features like high-resolution, endless tracks, instant access and ease of editing. So why does Lord-Alge prefer to work with something non-standard that has none of these qualities?

“They can say using the 3348 is oddball,” responded the American, “but right now there is no other format to which you can compile all the ProTools stuff and that works well and is reliable. When you’re mixing with tape, you’re doing rewind and fast-forward and locate and play, and you get a feel for a song in a way that a computer doesn’t give you. Plus, when I compare the sound of ProTools and Apogee and all that, the 3348 still sounds better to me. It’s punchier and more in-your-face, like vintage analogue tape. My brother uses the 24-bit HD 3348, but I’m used to the way my 3348 sounds, and as long as you hit the level well, you’re okay. The essential thing about bits is really the resolution of level. The 3348 has a sweet spot where it sounds really good, somewhere in the top 10-15% of the level.

“I still prefer the open reel format, sonically, in terms of vibe, in terms of having something stable, and it gives me a definite number of tracks to end up with. These days many songs come in as a ProTools file consisting of well over 100 tracks, and you can have issues when loading such a file because tracks are spread far and wide. With 48-track digital tape there’s nothing hidden and you know everything is there. And there are no real compromises in comp’ing down to 48 track, or, as is more often the case, 44. You actually end up being more creative because you’re making a lot of your magic happen in your comps. If you look back at Sgt Pepper’s, everything was comp’ed, four tracks on four tracks. In most early records it was all about submixing, and about mixing from the word ‘go’.”

With these last few sentences Lord-Alge’s touches on the heart of his mixing approach, and what appears to be his core reason for using the 3348. The whole process of comp’ing down to and mixing from 44 tracks appears to offer him an elegant way of organising his material and sharpening his creative focus. It’s a streamlined and long-standing working method that has served him well, and he sees no need to change something that continues to help him deliver mixes that sound relevant today, are head and shoulders above the competition, and regularly straddle the upper regions of many international hit parades.

fader moves are even more important than EQ. No matter what song you have, you have to help it to build

MAKING WAVES: CHRIS LORD-ALGE PLUGS IN!

Last year Chris Lord-Alge, hitherto not perceived as the world’s most enthusiastic ProTools and plug-in user, surprised many by endorsing Waves’ new SSL 4000 bundle, even offering the company his SSL settings for a variety of instruments, so they could use them as plug-in presets.

“I normally don’t really endorse anything,” comments Lord-Alge, “but when the Waves bundle came out, I knew that SSL had given them the green light to officially copy the E-series EQ. It sounded really good, it looked good, and it was very similar to what I was used to, as I’ve been sitting in front of the E-series for years. So I looked at a whole bunch of settings I had used over the years and copied them right off the console.”

“Today, believe it or not, the plug-in I use the most is the Waves SSL bundle. I use it in conjunction with the console. If I can’t get the guitars bright enough on the console, I can add 6dB at 8k on all guitar tracks on the way in. Or I can use some of the SSL limiting in ProTools. Also, the difference between the console and the plug-in is that every one of those plug-in EQ and compression settings sound exactly the same. But on the console each channel is a little different. It’s the nature of a beast that’s 20 years old. So I now use my own presets on the Waves SSL plug-in as a starting point, and I tweak from there.”

MIXING REACTIVE CHEMICALS

The best way to examine the ins and outs of Lord-Alge’s mix approach in detail is to take apart his mix of one particularly successful song. We’ve chosen the slow-building, wall-of-sound rock track Welcome to the Black Parade by My Chemical Romance, which features a massive, Roy Thomas Baker-style kitchen sink production.

Chris Lord-Alge: “This song came in on a ProTools file with 159 tracks. After I get the file in, I review the possible comp scenarios with my two assistant engineers. They then prep the file, getting rid of all the crud – hums and noises and so on – and they also comp with the balance they think I’m after. When you clean up the audio files you have to make sure that you cut and tail things off in a musical way. There’s no ‘global leakage clean-up’ plug-in – you have to manually go through things, and that can take time. Though most of the time the engineers or the producers of the tracks that I mix are really good and will have prep’ed the file well.

“All the comps are done inside ProTools, because I want to be able to reprint the comp – if necessary – onto a fresh piece of tape. The comp of ‘Black Parade’ was 44 tracks, the remaining four tracks were for the rough mix, for reference, and I printed my final mix back to the 3348 [see track sheet]. There were 26 ProTools tracks that consisted of huge marching snares and rooms and ambience, which we called The March. It’s comp’ed down to a stereo pair (tracks 45&46). Then there was what we called The Ensemble, which is woodwinds, brass, strings, which was 10 tracks, comp’ed to a stereo pair – we comp’ed the big orchestral drums – bass drums and timpani and so on – separate to 13&14. There were also six tracks of Ensemble rooms, reduced to a stereo pair, plus four tracks of cymbal overdubs that we comp’ed to tracks 15&16. We made a duplicate of the Ensemble, 16 tracks to a stereo pair (1&2) and the Ensemble rooms (5&6), because we needed to do an edit for the single version of the song.

“The drums were fairly straightforward: the comp had two snares, stereo toms, hi-hat, stereo overheads and stereo room. I replaced their kick with a clean and punchier kick sample and also added two snare samples – all samples were taken from the track. The bass was a DI and an amp. The main pair of guitars, on tracks 25&26, was originally four tracks, and the second stereo pair was 10 tracks. The third pair of guitars is a stereo comp of three sets of ‘hand-offs’ [non-overlapping parts], and each hand-off was five tracks. Tracks 31&32 are the piano, which hand-offs twice to the cascading guitar solo, which was originally 10 tracks. If you listen to the comp, it’s like ‘Oh my god, that sounds just like Sgt Pepper’s the way that’s comp’ed.’ The lead vocals (17) are doubled (18), and the first set of backing vocals (20&21) is six tracks to a pair, and the second set (22&23) is 10 to a pair, so you have 16 tracks of BVs going to four tracks. The BVs included what they called an ‘orphanage,’ which means kids’ backing vocals. Plus there are eight tracks of organs reduced to a pair.”

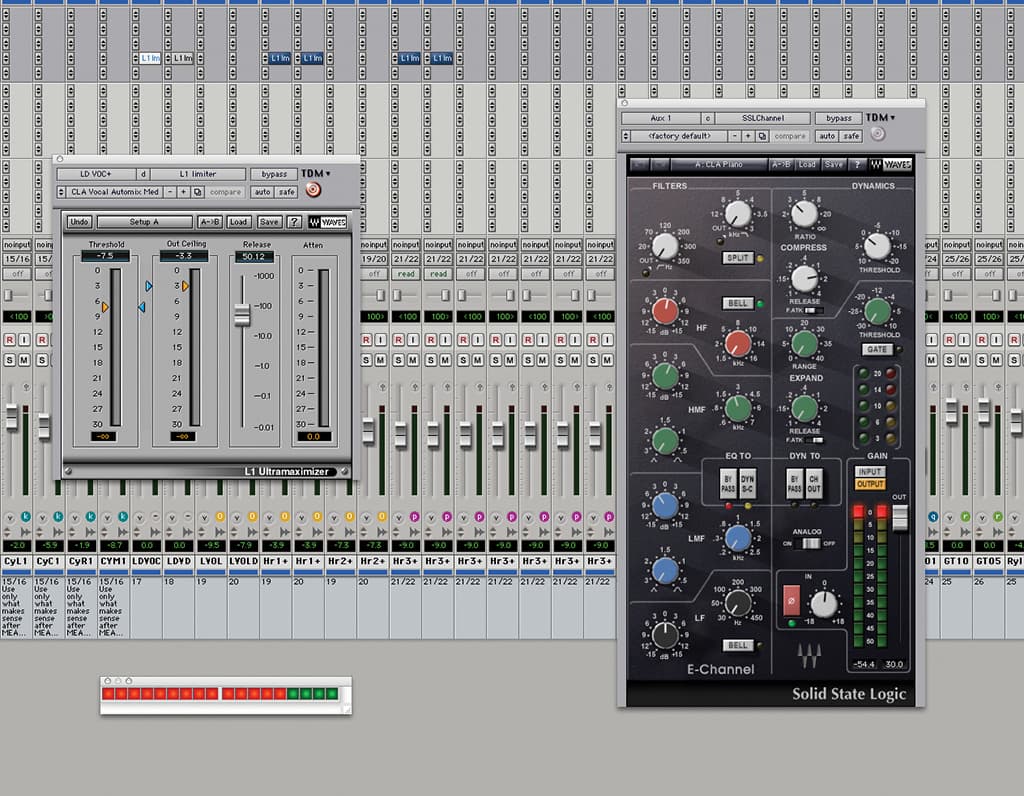

Lord-Alge explained that he adds plug-in effects during the comp’ing stage, mainly to tidy up his comp’s, and because he’s still working within ProTools. “There are some songs in which I’ll be a bit more heavy-handed with plug-ins. If I need 15dB high-end on some track and it still sounds dark, why not EQ it on the way in? [On the way to the 3348, that is.] Plug-ins that I often use are the Waves SSL plug-in – the one that I endorse – and Waves L1 and L2 compression plug-ins, Bomb Factory’s 1176 for help with compression, and the Massenburg EQ plug-in, which is really good. While I’m still in ProTools, the plug-ins aren’t going to have a problem with a bad patch chord or some crud that builds up from your internal processing, so I’d rather use plug-ins and apply the external stuff later on.

“The Black Parade file was recorded so well that it did not require a bunch of plug-ins. It was all about balancing, which is a big deal. All I used for the song were the SSL EQ on the piano, to boost high-end around 5kHz (pianos, for some reason, often sound dull right away in a mix), and the L1 on the lead vocals. The L1 adds some spit and attitude to the vocal. It makes it bark a little harder than if I’d copied it straight into the 3348. It’s put in to add a little level, a little tone. It works almost like an EQ, rather than a compressor, which is funny.

“Once all the material is on the 3348, my real mix begins. I review every comp and every track and if I come across comp balances that need to be fine tuned, we do that. Sometimes that’s done with the band in here, because they may want something specific to stick out. Some of the comps were set and forget, but a bunch of them required automation within ProTools.”

“I try to always have the same instruments and effects coming up on the same tracks on the 3348 and the corresponding channels on the console. On the console, 1-4 are delay effect returns, 5&6 percussion, 9-16 keyboards and/or percussion, 17-24 vocals, 25-32 guitars, 33-48 drums, 49-52 stereo reverb channels. If everything is parked in the same place, all you have to worry about is the song. When you’re mixing you want to eliminate all the things that make you think outside of the song. It’s an ergonomic issue more than anything. When you know where your outboard is, you can begin with your favourite compressor. You have a good starting point, and then you can start to change things if you want.

“The first thing I do after I’ve sorted out the comps is push all the faders up, and get a balance right away. I EQ everything at the same time, because everything reacts off everything else. It’s not like I’ll tinker with EQs individually at this stage. I’ll only do some fine-tuning on solo-ed instruments once I have a vibe for the song. When everything is in place and I have the delays set where I want them, I start automating. I automate in a very dangerous way, where one false move can wipe out what I did just before. So I’m just forging ahead, sculpting things 15 or 30 seconds at a time. I get a feel for the song and am getting bolder, treating mixing like a live performance.”

Panning is something I’m not subtle with. It’s either left, right, or centre. Absolutely

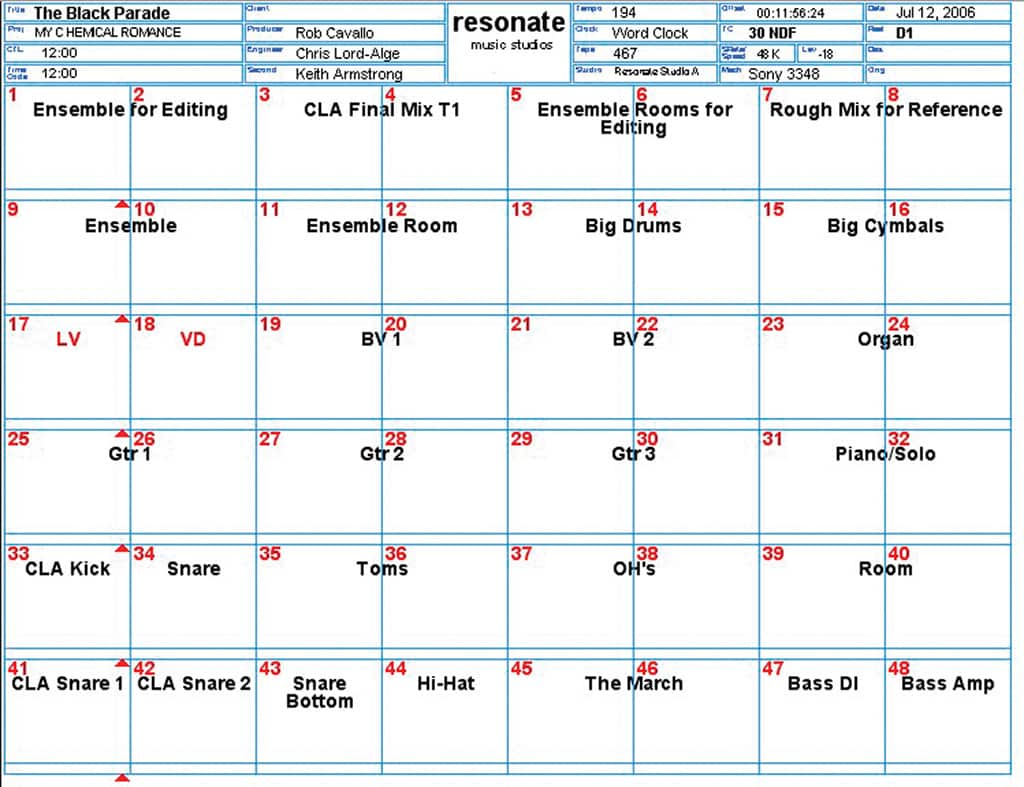

The Sony 3348 tracksheet for Welcom to the Black Parade. Chris Lord-Alge likes the sound of the digital multitrack and the discipline of comp’ing down to 48 tracks.

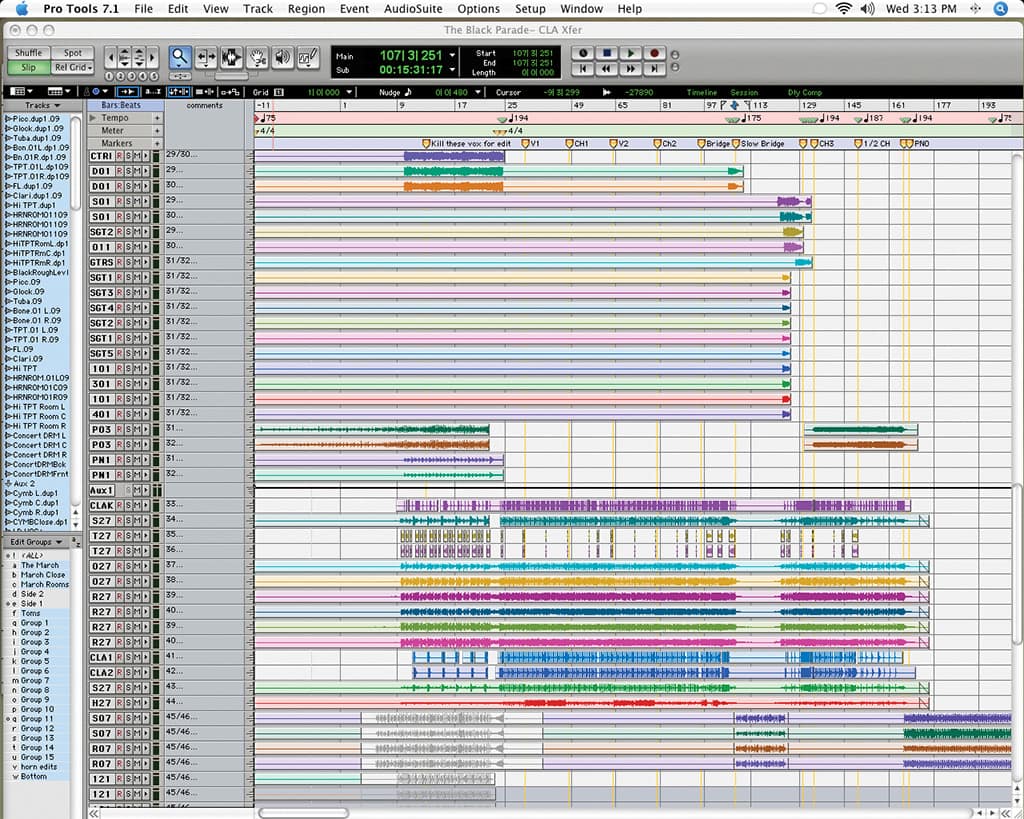

The original ‘Black Parade’ ProTools file was comprised of 159 tracks. These were comp’ed down to 48 tracks on the Sony 3348.

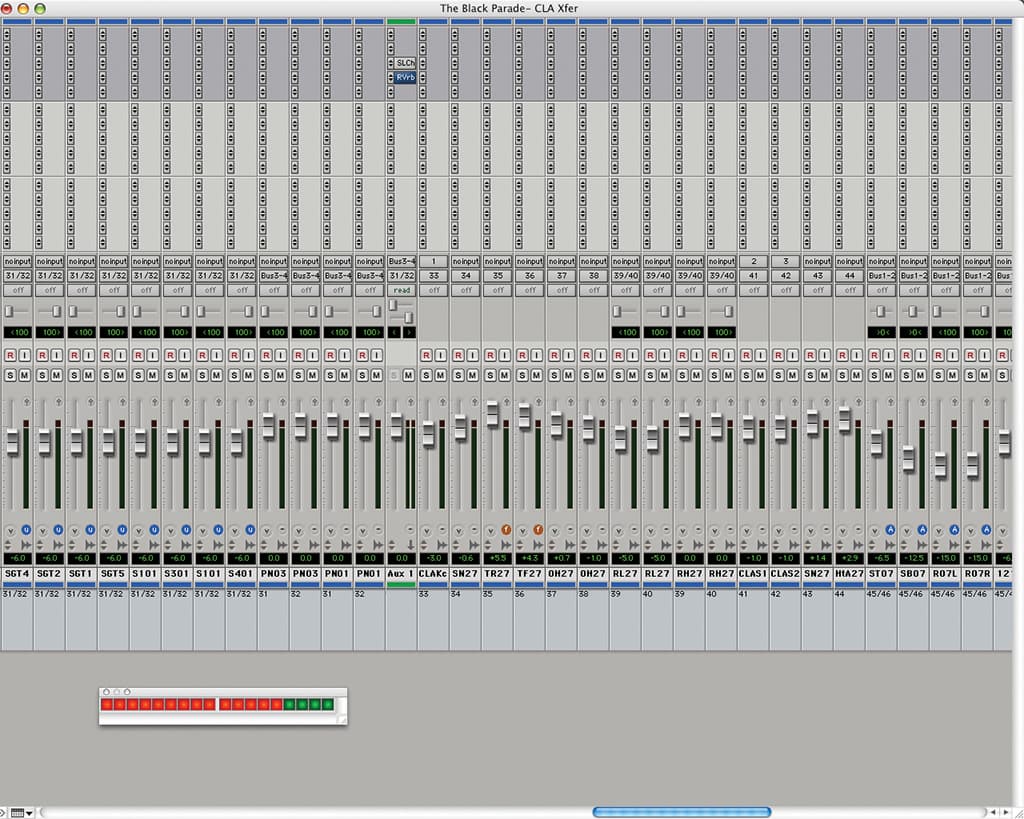

‘Black Parade’s’ ProTools Mix window. Chris Lord-Alge normally applies some plug-in processing during the transfer to the 3348, although ‘Black Parade’ was recorded ‘so well’ it made it through largely unscathed.

APPROACH TO EQ

Lord-Alge agrees that in the case of Welcome to the Black Parade, which builds and goes through different sections, some of which are of a massive wall-of-sound nature, EQ is of particular importance. “The mix was a challenge because there were a few sections in the song, especially during the solo, where there were a lot of ‘mouths to be fed’. But fader moves are even more important than EQ. No matter what song you have, you have to help it to build. You have to make each move more dramatic, and dynamics are judged by ear, not so much by level. You also keep your dynamics so they won’t fold under the radio compression. What angers me is when someone tries to make my final mix 9dB louder by L1-ing it to the wall, and flattens out my impact, just to make the CD louder. I will already have done all the compression and limiting that I think is necessary.

“Panning is something I’m not subtle with. It’s either left, right, or centre. Absolutely. Unless you’re panning an orchestra and you’re trying to make it sound like real life, as we did on Black Parade. But I try to make my panning extreme, so it jumps out at the sides. As far as outboard effects are concerned, the drums were mostly treated with an 1178 at 4:1 and a Neve 33264 at 2:1, all slow attack and quick release stuff with 4-5dB movement. The reverb was the Sony DRE2000, set to one-second length, just a short room. In terms of EQ, I tend to suck out the mid from kick-drums, add top to snares, and make sure that the cymbals are not coming from everywhere. The whole thing with drums is once you have your overall mix in good shape, ride the faders to make them sit well in the track. You have to do one automation pass just for that. It’s a lot easier to ride faders than to EQ. A lot of people over-compress and over-EQ drums, which lessens their impact. So get your hands on there and ride them to make sure the drums are balanced in each section and that each section works.

IN A SILENT WAY: HOW TO HIT YOUR MIXES HARD

Famously, Chris Lord-Alge mixes tend to sound particularly hard-hitting and in-your-face. When asked what his main ingredient is in achieving the apparent power and loudness of his mixes, his answer reaches for the polar opposite, and is, perhaps, not quite the sexy rock ’n’ roll strategy some might have hoped for.

“Well, it’s to do with using old compressors and the SSL EQ and the way that desk is a really hard-hitting desk. It makes it a lot easier to get that sound. But most of all,” he reveals with a smile, “I listen really quietly. When you’ve been doing this job for a while, you tend to listen at such a low volume that in order for it to hit you in the face, you have to really push it. I listen on NS10s, the original ones with the covers on them, plus an old Infinity 12-inch subwoofer that cost me $300, so I can hear the ultra-low end. Listening at low volumes prevents fatigue and you can hear better what’s going on. When you turn things up, after a while all your moves become a smear. So when you’re doing really critical moves, do them at a low level.”

Of course, Lord-Alge wouldn’t be in the world of rock ’n’ roll if he didn’t occasionally like cranking up the volume, and he also needs to be able to do so to create a vibe for the band. To this end his room at Resonate Studios is kitted out with two Miller & Kreisel MPS-2510p speakers for left and right. Surrounds and centre are MPS-1611p (serial numbers 1, 2 and 3), Sub1 is MPS-5420, Sub2 MPS-5410, and bass management is courtesy of LFE4. “They sound really clean,” says Lord-Alge. “I like them.”

COMPRESSION

“The bass has a Black [Urei] 1176, 4:1, 7dB gain reduction. You begin with checking that the bass is in phase, and I also add plenty of top end, so it fits in the track. You may think that the bass sounds bright when you solo it, but once you put the heavy guitars on, it always seems dull all of sudden. The guitars were multi-miked pairs, usually three microphones per amp, so during comp’ing it was a matter of balancing the different microphones on each amp onto one track. It’s a bit like finding the sweet spot with the drawbars on a B3. It’s like adding salt and pepper or salad dressing, you flavour to taste. On the console I’m pretty sure my main compressor on the guitars was the LA-3, moving 2–3dB, maybe 5dB, and I added some console EQ, 6-8dB around 8k. I’m not scooping mids out, because these guys have worked hard to get the mid tone that they want. It’s more a matter of making sure that the guitars are bright enough in the track. I don’t think there were reverbs on the guitars, they were just dry.

“The lead vocals all got Blue 1176 compression, 4:1, quick release – this in addition to the L1 compression during comp’ing. The backing vocals were compressed with the Inward Connection TSL-3. I also did some de-essing with the dbx 263x. There were several delayed reverbs. The amount varied from section to section. I used some of the long Ensemble reverb [see below] on the lead vocals in the beginning. There are also a few long delay spills that I automated. I would have done those with the SDE3000 or Echo Pro, both of which I like for longer delays. The delays would have been tempo-set to quarter or eighth notes; perhaps the bridge had dotted 8ths on them. I also used the Marshall Tape Emulator for slap echo, which was kicked-in just for the vibe, probably at 15ips with varispeed. With the vocals you try to get the overall tone for the whole record with the compressors, and then you’re chasing the faders to get them really in your face. It’s all about automation.

SEVEN-SECOND REVERB

“They did a good orchestral recording, so the orchestra was just automation and panning to get the blend. I think I also put all the reverbs I had on the orchestra, just to give it a 3D effect. The organs were dry, but the piano had Inward Connections TSL-3 compression on it and the same long Ensemble reverb the vocal had in the beginning. The Ensemble reverb was a giant Lexicon 300 hall with a seven-second decay time. That really gave the orchestral stuff some length and character. Some of the background vocals may also have had that long reverb and even some of the big drum fills in the beginning. That was the more anthemic reverb, but once the song turns onto a rock song, all the long reverbs get shut off, and it was back to the tight band sound.

“You have these moments in the track where it’s open and soaring and where the big reverbs open all the floodgates, and then in other sections it was the one-second room. It’s an artistic choice how things change from section to section, and you have your line of effects for each. The song was a challenge to mix, but it was a hell of a thrill and great fun to do. It was also a great accomplishment for the band.”

And, one could add, for Chris Lord-Alge.
