Jack Johnson: Sleeps Through The Static

Jack Johnson’s new album, Sleep Through The Static, is a worldwide hit but not for any of the reasons you’d expect from a big-budget production.


1 June 2008

Title: Sleep Through The Static
Artist: Jack Johnson
Produced by: Jack Johnson and JP Plunier
Mixed by: Robert Carranza at Solar Powered Plastic Plant Studios, Los Angeles, on an SSL AWS900.

Text: Paul Tingen
Photography: Kizzy O’Neal

Jack Johnson’s fifth album, Sleep Through The Static is as laid back as ever. The album has been phenomenally successful, reaching No. 1 in every Anglo-Saxon country in the world, including Australia, the US and the UK. Not bad for music that was created entirely on analogue tape, almost without effects, and with a philosophy that deliberately championed feel, spontaneity and simplicity.

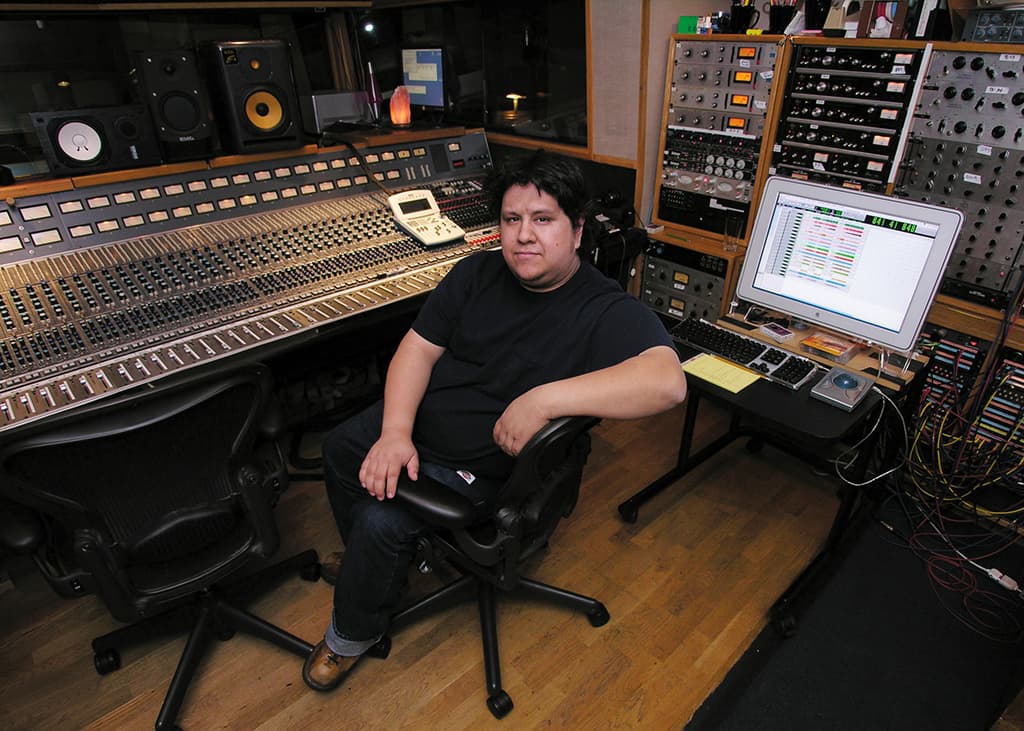

On the telephone from his home in Los Angeles, Robert Carranza, the album’s mixer and engineer, elaborated on the goings-on: “The whole focus of making this record was to simplify things,” related Carranza. “Even the process of using outboard gear was enormously simplified: there was hardly any. We trusted our instincts, and we had the good sense to not be bound by how people are making records right now. We did our own thing. We focused on feel, and if something felt right, we went with it. Even when it came to mastering, we told Bernie Grundman that this record didn’t need to be loud and that the acoustic songs should feel like acoustic songs and be less loud than the other songs. And it’s interesting for people to see that a hit record can be made in such a very simple way!”


Robert Carranza has worked with Jack Johnson since 2003, when he engineered and mixed the singer’s second release, On And On. He performed the same duties on In Between Dreams (2005), and graduated to co-producer (with the singer) for 2007’s Curious George. Carranza is therefore well placed to describe the differences between these albums. It turns out that even though the result may have been relatively similar, the making of Sleep Through The Static was indeed very different. It features more electric guitars and keyboards than previous albums, and was the first time Johnson recorded in Los Angeles, and to analogue tape. It was also the first time producer JP Plunier (Ben Harper, John Lee Hooker) was involved.

“The previous records I did with Jack were recorded to ProTools at his studio in Hawaii,” recalls Carranza. “Jack had never made a record to tape, and he asked me one day: ‘what’s the difference?’ I replied, ‘I don’t know whether you’ll hear the difference, but I can show you what the difference is’. And so he decided to do it on tape and soon realised that this was a good decision. Most of all it forced us to pay attention. With ProTools you spend a lot of time looking at the screen and listening with your eyes. Working with tape forced us to sit back and really listen to takes, and to what was good in terms of feel, and be a little bit more forgiving of little mistakes that happen. That was really liberating.

“Jack had gotten tired of ‘listening with his eyes’, and he loved to sit back, close his eyes and just use his ears. He also enjoyed the fact that we only had a limited number of tracks, and for most songs we didn’t even fill all of them up. We went with the attitude of: ‘let’s not be precious about it, if it works, let’s leave it as it is. The feeling of the song is more important than the technical side’. The other thing that helped was that we had moments of pause in between takes and songs. With ProTools the files come up instantly, but it takes a while for the tape machine to roll back, and it takes another minute to change reels. These scenarios created little moments of quiet in the recording process, and they made us pay more attention.

“Personally, I don’t mind whether I record analogue or to ProTools, but I will say that my views have changed after doing Jack’s last record. ProTools is a great thing, but working with a 24-track analogue multitrack forced us to make quality decisions, sometimes even irrational decisions! You can’t just fly things around at will, and this really helped us form this record. The point of our approach was not that it was old-school, but that we had a clear philosophy that was liberating for us. It helped us psychologically, and also sonically. But we didn’t overthink it. It was more a matter of, ‘let’s just do it’. In the end, the gear aspect is superfluous. If the song is not there, it doesn’t matter how you approach the recording.”


 4 x Neve 1073
 8 x API 512 mic pres
 12 x API L200 mic pres
 2 x A Design EM PEQ
 2 x API 560
 2 x API 550
 2 x API 550b
 2 x Speck EQ
 1 x Altamoda Unicomp
 1 x Thermionic Culture Vulture
 1 x Chandler TG1 Abbey Road edition
 1 x Summit DCL200
 1 x Empirical Labs EL7 Fatso Jr
 1 x TubeTech CL2A
 1 x Ridgefarm Boiler
 1 x Summit TLA100
 1  x LA2A
 4 x 1176
 2 x dbx 165A
 2 x dbx 160
 1 x Drawmer MX50
 1 x Studio Technologies Stereo Simulator


The recording location for most of Sleep Through The Static was the result of a happy coincidence. Around the time Johnson planned to record his album, he and his manager were looking for a place to house their label, Brushfire Records. They found a 100-year-old building in Los Angeles, which had a huge room at the back, previously used by a photographer. The duo immediately hit on the idea of turning it into a studio, and asked Carranza to organise it. Following the decision to record on tape, the engineer/mixer/producer suddenly found himself having to take a rather unusual angle to fitting out what was to be named Solar Powered Plastic Plant Studios (courtesy of the solar panels that were fitted to the roof and made the building 100% self-sufficient).

“Choosing the studio equipment was up to me,” explained Carranza. “Nobody had any foresight as to what to get. I already owned all the outboard gear that we needed and I also have a complete ProTools system, so the main challenge was to get a tape machine, a desk, and a monitoring system that would work in the relatively untreated acoustic space. We ended up buying a Studer A827 24-track. “As for the desk, Jack wanted something economical and low-maintenance. I’ve grown up with API, and they’re great, but I know how problematic they can be. The same goes for Neve. So I settled for the SSL AWS900. I realised that I could get any sound I wanted on this console, as opposed to a Neve, which will only give you the ‘Neve’ sound. And since I have an outboard rack full of preamps: four Neve 1073s, eight API 512s and 12 API L200s, I only intended the AWS900 to be used for monitoring and mixing.

“A friend of mine, Rich Costey, recommended the ATC SCM50 monitors, which definitely complemented the music. But they were too big for the control room, causing a big bump in the bottom end, so I had them in an office room off to the side. Sometimes I’d playback through them while sitting in the control room, with the office doors open, just to get a mono perspective. I’m a bit of a snob when it comes to monitors; I tried the PMC AML1s, but was thrown off because there was a big void in a couple of frequencies. I tried some M&K monitors, but they didn’t work either, even though they’re great speakers. In the end I settled on my tried and tested Genelec 1030s. They sounded perfect in the room. I also always reference things on a cheap boombox, to give a different perspective.”

I wouldn't buy a book that had blurred words in it, but with the loudness wars..., that appears to be where we're going

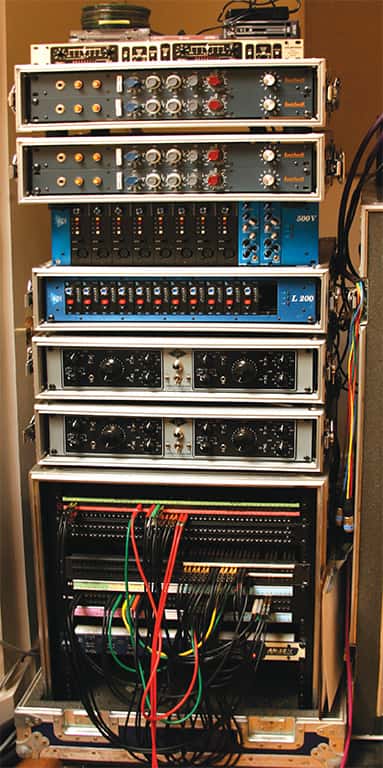

Vintage analogue gear was the order of the day during the Static recording sessions. From Studer tape machines to Neve, UA and API preamps, the sessions were captured with no computers in sight. Compressors and EQ from a wide range of eras also played their part.


So eager were Jack Johnson and his band – drummer Adam Topol, bassist Merlo Podlewski, and keyboardist Zach Gill – to start recording, that workmen were sometimes asked to take a smoko, so the band could get in. Given the band’s “feel, spontaneity and simplicity” ethos, it comes as no surprise that the basic tracks were laid down live, with the band playing together in the studio. Carranza elaborated on the how and why and what…

“The basic piano, guitar, bass and drums tracks you hear on the album were all recorded live, which I’m really proud of. It’s guys playing together, and the camaraderie that involves. Jack’s approach was: ‘I just want to come in and make it happen’, and ‘let the bleed be the bleed’. The piano had a little bit of drum bleed, which reminded me of the old Motown stuff. Initially we didn’t even have screens, so I called a rental company to hire some screens, which we placed around the drums to separate them from the piano and guitar. The whole process was definitely a trial by fire. We monitored through an Aviom headphone mixing system, so everyone could hear each other and make their own mixes in their respective cans. Then at some point someone said, ‘let’s not wear headphones!’ and from that moment onwards they tracked without them. I put up some nice microphones, and we did a couple of takes of each song, and picked the best one. In the case of one song I edited two takes together. Jack always did a scratch [guide] vocal that we used in a couple of cases. We just went for a really simple way of making a record.”


The “nice microphones” involved “nothing spectacular on the drums”, specifically a Sennheiser MD421 on the kick, two Shure SM57s on the snare (bottom and top), 421 on the toms, Audio-Technica AT4050 on the overheads, and a Royer SP24 stereo mic in front of the drums, a foot away. Bass was both DI and another MD421 on the Ampeg B15 amp. The upright piano was captured with two Neumann U87s placed in front of the soundboard. “Zach was initially playing towards the drummer, but to get more separation I moved him 45 degrees, so he faced the wall and I covered things up with a couple of packing blankets.

“Electric guitars were also pretty straightforward, with a Shure SM57 on the amp. The acoustic guitar was usually a Gibson J45, sometimes a Cole Clark, recorded with an AKG C451. I’d screened off the acoustic guitar so it didn’t bleed as much. Some songs started off acoustically, and Jack would say, ‘there’s too much bleed on the mic, let’s try an electric’, and all of a sudden the vibe of the song changed. We simply went with it. If I Had Eyes was one of those songs.

“We started the project using a vocal microphone I don’t really want to name. It was okay, but a friend of mine was telling me about the reissue of the U47 that Telefunken was making. So Telefunken sent me a demo copy, and the minute Jack sang into it, it sounded great. I called the company and asked them what the deal was, and they offered to send me a new one, but I was like, ‘no no no, I want this mic. It sounds amazing, you’re not getting it back!’ I still have it to this day. We went back and re-tracked some of Jack’s vocals with this mic. It made a huge difference, it had the sound I had been looking for for years.”


GUITAR LEFT, RIGHT & CENTRE: “The funny thing about this track is that you’ll notice three electric guitar tracks – 13, 14, and 19 – the last one being the live track that Jack initially played. There are also guitars on Tracks 2 and 20. This was the most amount of guitar overdubs we’ve ever done! We went AC/DC on this one! What happened was that we initially had two guitars – 19 and 14, left and right – and Jack felt that something didn’t feel right. So he went back in with a different guitar and a very different sound. He asked whether I wanted to match the sound, but I replied, ‘don’t bother.’ He did the overdub and I wondered what the track would sound like with three guitars, so I panned them left, right and centre. It’s not a big deal, everyone does it all the time, but for us it was different. Jack was like, ‘wow, this feels great’.

MONO DRUMS: “The other striking thing about this track is that it has a mono drum kit. I first recorded the song with a full drum kit, like in Static. You can see the hi-hat on Track 4 and the overheads on Track 7-8 remaining. I had also added one Coles 4038 mono mic to record the drums, kind of to get the old Motown sound, and when I was listening to the sound of that one mic, it sounded really great. When Jack later asked me for more tracks, I erased the snare, kick, and toms, and we went just with the mono mic, the overheads, and the hi-hat mic. Of course, the guitars helped fill the space that was opened up by having the drums mainly in mono.

STARTING THE MIX: “Because of the mono drums, I had to start the mix with them. They were the centre point of everything and they needed to sound really good. So I put Track 21 up first, and ran the drum signal chain through the same stereo bus as for Static, with the Fatso compressor, to give the drums a little bit more size and weight. Next I added the LCR guitars, which were kept pretty dry. If there was any reverb from the electric guitars it came from the amps. Then I added in the acoustic, piano (just boosting the upper mids), and the bass, again only riding a couple of notes. Merlo is such a good player that I didn’t need to use compression. I again used the MX50 de-esser on the lead vocal, and added a little bit of top end, around 12k, to give it some air.

NO TONE SHAPING:If I had Eyes was the easiest song to mix on the album, even though it has the most tracks. Like everywhere else on the album, there was no pitch-shifting, no AutoTune, no ping-pong delays. We really went for natural recordings, but with a modern feel. I wish I could take credit for shaping the guys’ sound a little bit, but they truly shaped their own. A song is the ultimate story to be told, and the music industry appears to be losing focus on that. I wouldn’t buy a book that had blurred words in it, but with the loudness wars and so on, that appears to be where we’re going. But if you open up a book with a good story that’s easy to read, ultimately you’re going to feel good about it. So we do these records, and the fact that so many people resonate with it, is just amazing.”


Overdubs, said Carranza, were recorded with headphones – “it’s hard not to” – and included guitars, backing vocals (U47), banjo (Sennheiser 251), clavinet (SM57), melodica (Sennheiser 251), pump organ (251), synthesizers, tambourine (451), and handclaps (U47). “The mic we used was usually based on what was nearest and easiest to use. When you work like that, it creates a nice flow. When someone had an idea, he could instantly try it out, and even if the sound wasn’t right, at least the idea was there.”

Regarding the signal chains, simplicity again ruled the roost. “For vocals it was the U47 going into an API 512 and an LA-2A with a dB of compression at the most, straight to tape. I’ve learned in the past that you want to use little or no EQ during recording, because if you later want to drop in a fix, you’ll never match it. The drums were all cut through API preamps. For bass we went through a Universal Audio 610, guitar and piano went through the Neve 1073s. That was pretty much the signal chain on everything.

“There was no compression; not on the bass or the guitar. I only compressed the kick drum a little bit, and I mean just a dB, to smooth it out a little. That was it. Everything else was pretty flat. Because of their great musicianship, they balanced themselves amazingly. It was almost unnatural. I think the fact that they didn’t use headphones when laying down the basic tracks helped them to really listen to each other. And finally, we didn’t use a click track, except on the song Hope. We struggled a bit with the tempo on that one, and when we finally agreed on a tempo, we started the song with a click track and then faded it out. Again, we trusted our instincts and did our own thing. If it felt right, we went with it.”

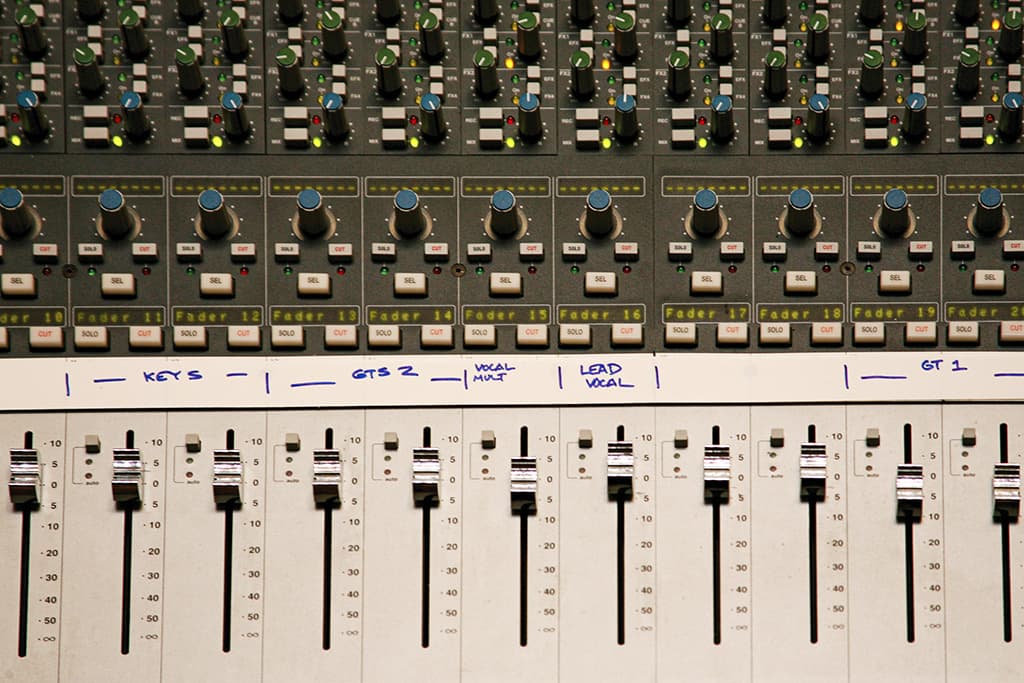

Robert Carranza mixed the album at Solar Powered Plastic Plant Studios, using the Studer A827 and the SSL AWS900. Was he not tempted to load everything into ProTools and mix from there? “I didn’t want to change the mood or atmosphere of what we had been doing at all,” replied Carranza. “I could have mixed in ProTools, but aesthetically I wanted to keep the project in the flow of not looking at a screen. Even when mixing you tend to look at the screen, and you often go, ‘what’s going on right there?’ and zoom in to see it. I wanted to stay away from that. I wanted to focus on sound, faders, and my perception of what was coming out of the speakers.  I wanted to mix off tape, and Jack was okay with that.

“The only digitisation in the whole project occurred during mixdown, which was via Benchmark A/D converters to a Tascam DVR1000HD, both 24/96 and DSD. And we only did this because we couldn’t get a hold of any half-inch tape! The supplier had run out and nobody was making it at the time. Initially there was some concern about not printing to half-inch tape, but after we played the mixes back, nobody was worried. We went straight from the SSL to the Benchmark A/D converters then straight into the Tascam – no patchbay – and it sounded great.”


RECORDING THEN MIXING: “Trying to create a fresh mix from a song that you’ve also engineered is very hard. You may think you know what the song is about and that you understand how to build it, but you could be completely wrong. Static was one of these songs with an ebb and flow that was hard to grasp. I began the mixing process with this song, but quickly put it away again. There was something about the balance that I wasn’t getting quite right, so I jumped over to the acoustic songs. They were straightforward, so I got them out of the way and then returned to Static. My concern for this particular song was that I was getting lost in it. Here was this very sparse track, and I felt that I had to make it sound as if something was happening. I was adding compression to the snare drum and to other things, but then suddenly realised I had jumped in too quickly and needed to pull the reins back.

DON’T OVERDO IT: “One of the best lessons I ever learned was when mixing Los Lobos’ Live At Fillmore. I was in the studio and the band was on the road, and I was uploading mixes for them to listen to. One day I got a call from the band, and they were all in a conference room, and they said, ‘Hey, have you listened to the rough mixes?’ And I was like, ‘no, why?’. And they replied, ‘Have a listen and then call us back’. These mixes were really quick, rough live mixes that I had done in the truck. So I listened to them, and they sounded incredible. As a result I told my engineer to pull back all the faders and effects and I started again from scratch. It’s one of those lessons that you learn, not from engineers, but from musicians. And it’s what happened to me with Static, I started overdoing it, and I realised that I was back to making the same mistake I had initially made with Los Lobos.

“So when I came back to the song, I simply put the faders back up, and then started with the lead vocal (21) and the live guitar (14). I then added the vocal double, followed by the other instruments around it, and finally the rhythm section. The whole song took maybe four hours to mix! With this album mixing was a matter of lining up the faders and listening constantly. I’d listen to a song four or five times, take a break, and listened again. I was aware that the tape was degrading with each playback, so the pressure was on. Static was very easy to mix. Technically there’s very little happening in it. My main concern was for the feeling to come across. That’s what I spent the most time on.

DE-ESS OPTIONS: “The lead vocal was treated very minimally. Because Jack had been very close up to the vocal mic, I needed to do some de-essing, and I used the Drawmer MX50 for that. I really like that effect. Many people like the dbx 902 or the SPL Transient Designer, but the MX50 was in the room, and it’s what I used. I also ran the vocal through a Tube-Tech TCL2 limiter, with 2:1 ratio and maybe 1dB compression. It gave the vocal a little bit more body and pushed it up a little. And that was it. I did experiment with some TC Electronic System 6000 reverb, because I wanted to give a bit more of the feel of a room. But in the end it was like, ‘You know what? This is a waste of time!’. What remained was very slight. I’ll give you a thousand bucks if you can hear it!”

NO COMPRESSION: “I used no compression at all on the electric guitar, the bass, or the piano. The only thing I did on the bass was manually ride a couple of notes that didn’t come out clearly. Most of the stuff was done without automation. The piano had a little bit of SSL EQ to bring out the high mids; I wanted it to speak a little more. The drums were also really straightforward, with all the faders straight up. I’m a big fan of the Empirical Labs EL7 Fatso Jr, and I added a little bit of compression on the drum bus with that. It made a difference, but not a huge difference. It just gave it a bit more size. The ambience on the drums came from the overheads and the room mic.

ACCIDENTAL AMBIENCE: “Track 13 and 19 were the guitar lines in the verse that sound like a guitar solo. They were definitely treated differently than Track 14. I recorded the guitar lines with a close mic on the amp and I also had a Shure Beta 58 talkback mic, which was close to Jack’s face. I accidentally left the talkback mic on, and it sounded great as an ambient mic. It gave the guitar a much warmer sound. So I ended up just using that. The intro features a pump organ on Track 17, played by Jack, and Zach overdubbed a melodica on top. There’s also some outro noise on Track 17 and 24. Jack wanted some kind of static-like sound, but didn’t want to use sample CDs. So Zach pulled up this white noise sound from a Moog Voyager, sweeping it in and out. It gives you the sound of a radio station that has gone off air. There were no effects on the intro and outro sounds.

TURN DOWN THE BANJO!: “It was a very simple mix, but complex to do at the same time. My first pass was very close. Jack had some little comments, for example about the banjo, that really jumped out at you, he wanted it really tucked down, and I was like, ‘but it’s just two seconds, nobody is going to hear it and we spent so much time recording it with a great mic.’ That was the engineer in me talking. When I tucked it down it sounded great. It is well understated, on purpose, because the whole song is supposed to feel understated.”
